Cole Hersee Battery Idol GR 120: Complete Guide to Multi-Battery Management

What is the Cole Hersee Battery Idol GR 120 HEN COL 30?

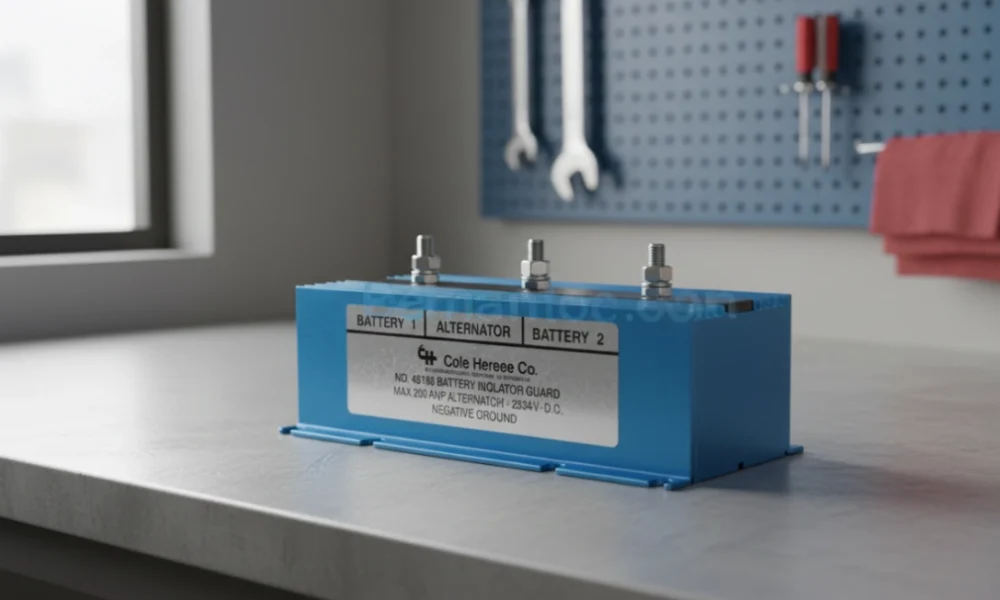

The Cole Hersee Battery Idol GR 120 is a solid-state battery isolator that manages power distribution in dual-battery systems. It uses advanced voltage sensing technology to protect batteries and optimize performance across multiple power sources.

Think of it as a smart gatekeeper for your vehicle’s electrical system. It controls when and how power flows between batteries, protecting your starting battery from drain while allowing auxiliary batteries to run accessories. With 120-amp current capacity, it handles demanding applications in commercial vehicles, marine vessels, and off-road rigs.

The device prevents battery drain by monitoring voltage levels and automatically disconnecting auxiliary batteries when they threaten your starting power. This means longer battery life, fewer jumpstarts, and reliable starting power when you need it most.

Key Features That Set It Apart

The Battery Idol’s solid-state design eliminates moving parts that wear out over time. Unlike mechanical isolators with relays and solenoids, this design delivers greater reliability in high-vibration environments like heavy equipment and commercial trucks.

Continuous voltage monitoring automatically disconnects batteries when voltage drops too low, preventing the over-discharge that shortens battery life. The system operates without user input, unlike manual battery switches that require you to remember position changes.

Corrosion-resistant construction with an IP67/IPX9K rating protects against dust and temporary water immersion. This makes it suitable for marine applications where moisture is constant. Other features include:

• Silver-plated terminals for superior conductivity
• Thermal overload protection preventing heat damage
• Parasitic drain prevention system
• Vibration-resistant housing
• 12-36VDC compatibility for various vehicle types
• Battery selector switch integration

Applications and Best Uses

Commercial trucks benefit from reliable power management between starting and auxiliary batteries. Truckers can run accessories overnight without worrying about dead batteries at sunrise.

Marine applications match perfectly with the device’s corrosion resistance and water protection. Boats typically run multiple batteries for starting engines, operating electronics, and powering accessories—all requiring careful management.

RV owners use the Battery Idol to manage house battery systems during off-grid camping. It ensures power for essential systems like refrigeration and lighting when disconnected from shore power.

Heavy equipment and construction vehicles benefit from the robust design and high current capacity. These machines operate in harsh conditions where reliability isn’t optional.

Emergency vehicles require guaranteed power for critical systems. When response time matters, battery failures can have serious consequences.

Off-road vehicles with winches, light bars, and communication equipment need proper battery management. These power-hungry accessories can quickly drain starting batteries without protection.

How the Battery Idol Works

The system constantly monitors battery voltage levels. When your alternator charges (typically above 13 volts), both batteries charge simultaneously for maximum efficiency.

After the engine stops and charging voltage drops, the Battery Idol tracks discharge rates. If voltage falls below a preset threshold, it automatically disconnects the auxiliary battery from the starting battery. Your accessories continue running on the auxiliary battery while your starting battery remains protected.

This automatic operation eliminates human error. The smart battery synchronization ensures optimal charging with bi-directional support, allowing flexible power management across your entire system.

Built-in transient voltage suppression protects your electrical system from dangerous power spikes during alternator failures or jump-starting. This protection extends the life of sensitive electronics throughout your vehicle.

Troubleshooting Common Issues

Battery Drain Problems

Start by checking all connections. Loose or corroded terminals bypass the Battery Idol’s protection systems, allowing drain to continue unchecked.

Verify your wiring matches the current load. For a 120-amp isolator, use heavy gauge wire (typically 2 AWG or larger) for main power connections. Undersized wire creates resistance, heat, and voltage drop that affects performance.

Check for parasitic draws using a multimeter. While the Battery Idol prevents these draws from affecting your starting battery, it can’t compensate for excessive loads that overwhelm the system.

Charging System Compatibility

Verify your alternator’s output matches the specifications needed. Most automotive alternators produce between 13.5 and 14.5 volts, which works well with the Battery Idol.

If you’ve upgraded to a high-output alternator, confirm the Battery Idol handles the increased current. The GR 120 model manages up to 120 amps continuous, but exceeding this risks damage.

Vehicles with smart alternators or variable voltage regulators may require additional steps for compatibility. The Battery Idol’s advanced design handles most modern charging systems, but some configurations need specific wiring adjustments.

Indicator Light Malfunctions

Check the fuse protecting the indicator circuit and replace if blown. Inspect wiring to indicators for damage or loose connections that interrupt the signal.

The indicator system operates separately from main power circuits. Indicator problems don’t necessarily mean the Battery Idol isn’t protecting your batteries—the core function may still work perfectly.

Unexpected Disconnections

Review your voltage thresholds. Standard disconnect settings work for most applications, but some configurations require adjustment.

Look for loose connections or intermittent shorts causing voltage fluctuations. These fluctuations trigger protection systems even when actual battery levels remain adequate.

Examine battery health. Aging batteries with reduced capacity drop voltage quickly under load, triggering disconnections even when the Battery Idol functions correctly. Sometimes the problem is the battery, not the isolator.

Installation Best Practices

Install the device close to batteries to minimize voltage drop, but not so close that excessive heat or battery fumes cause damage. Proper placement balances accessibility with environmental protection.

Use proper gauge wire for the current load. All connections should be clean, tight, and protected from corrosion using terminal protectors or dielectric grease. Poor connections create resistance that generates heat and reduces efficiency.

Always disconnect all power sources before beginning work. The Battery Idol handles potentially dangerous current levels that cause injury or fire if mishandled. Use proper insulation and wear protective equipment.

The stud terminal configuration requires attention to torque specifications. Over-tightening damages terminals, while under-tightening creates high-resistance connections that overheat.

If you’re not confident in your installation abilities, seek professional help. The cost is minimal compared to potential damage from improper installation or the time lost troubleshooting connection problems.

Maintenance Tips for Longevity

Check all connections at least every six months. Regular inspection catches loose terminals or developing corrosion before they cause problems.

Clean terminals with appropriate electrical contact cleaners. Avoid harsh chemicals that damage protective coatings or conductive surfaces.

Periodically retighten all connections to specified torque. Vibration loosens connections over time, even in well-installed systems.

Protect the device from extreme heat, moisture, and corrosive environments when possible. While the Battery Idol resists harsh conditions, minimizing exposure extends its service life.

Watch for signs that replacement might be needed: physical damage to housing, terminals that won’t stay tight, or consistent failure to perform basic functions despite thorough troubleshooting.

Making the Right Choice for Your Vehicle

The Cole Hersee Battery Idol GR 120 HEN COL 30 provides reliable battery management for vehicles with complex electrical demands. Its advanced features, robust construction, and automatic operation make it a practical choice for professionals and serious DIY enthusiasts alike.

Proper battery management protects your investment in expensive batteries and electrical systems. It prevents the frustration of dead batteries and the potential safety issues they create. The Battery Idol delivers these benefits with minimal maintenance and user intervention.

Whether you operate a commercial truck, outfit a marine vessel, or build an off-road rig, the Battery Idol provides the battery management capabilities needed for years of reliable service.

Ready to upgrade your vehicle’s power management? The Cole Hersee Battery Idol GR 120 HEN COL 30 offers a proven solution to multi-battery challenges. Have questions? Contact the team at mashmagazine.it.com/ for personalized advice.
